Instrument panel
under construction
under construction

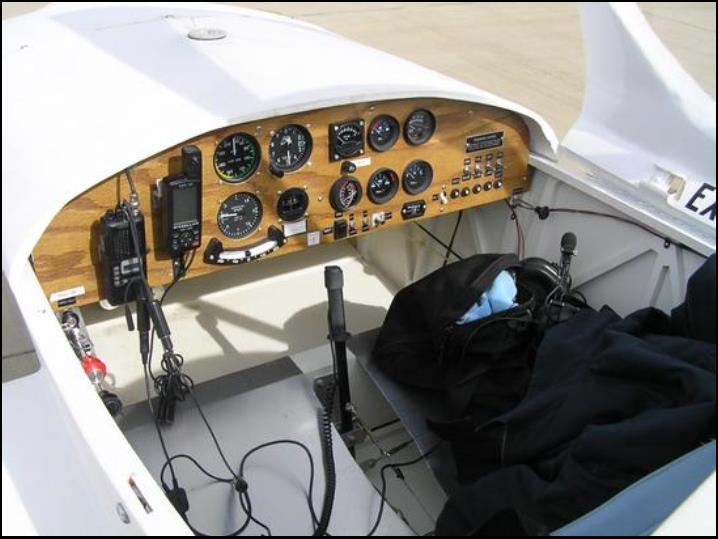

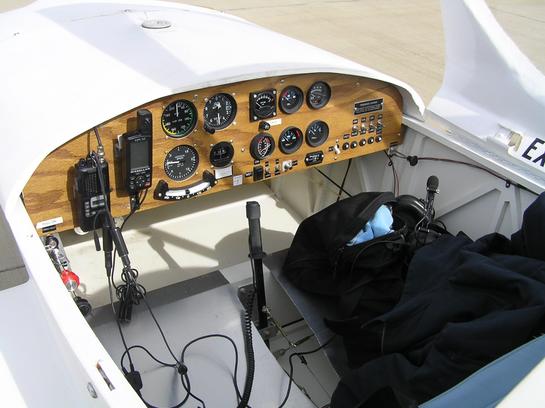

Finished Instrument Panel as of Sep 2006 (Photo taken at the KR
Gathering). Tiny Tach has been replaced with a Westach Tach and
a separte hour meter. I was unsucessful getting the Tiny Tach to
work with the shielded wires on the magneto system. The RC
Servo trim system was said to be unsafe by the DAR so in its spot
is the ELT remote panel. My trim tab is now just ground
adjustable. Hand held radio mounted on the left side. Handheld
GPS mounted to the right of the radio.
Gathering). Tiny Tach has been replaced with a Westach Tach and
a separte hour meter. I was unsucessful getting the Tiny Tach to
work with the shielded wires on the magneto system. The RC
Servo trim system was said to be unsafe by the DAR so in its spot
is the ELT remote panel. My trim tab is now just ground
adjustable. Hand held radio mounted on the left side. Handheld
GPS mounted to the right of the radio.

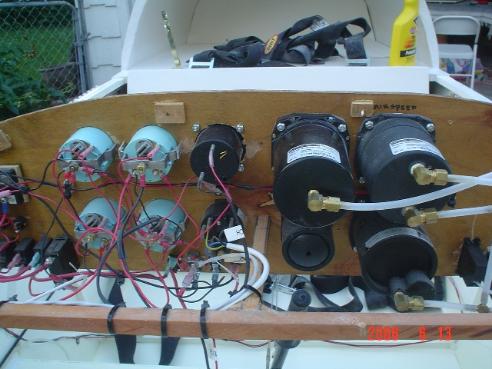

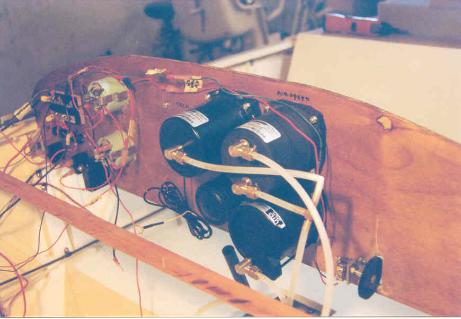

Trim tab control on
the bottom right of
photo. Brass
fittings and plastic
tubing for pitot and
static lines. Update
2006 - RC servo
has be removed as
the DAR said it
would be unsafe.
The ELT remote
panel is now in it
place on the
instrument panel.
the bottom right of
photo. Brass
fittings and plastic
tubing for pitot and
static lines. Update
2006 - RC servo
has be removed as
the DAR said it
would be unsafe.
The ELT remote
panel is now in it
place on the
instrument panel.

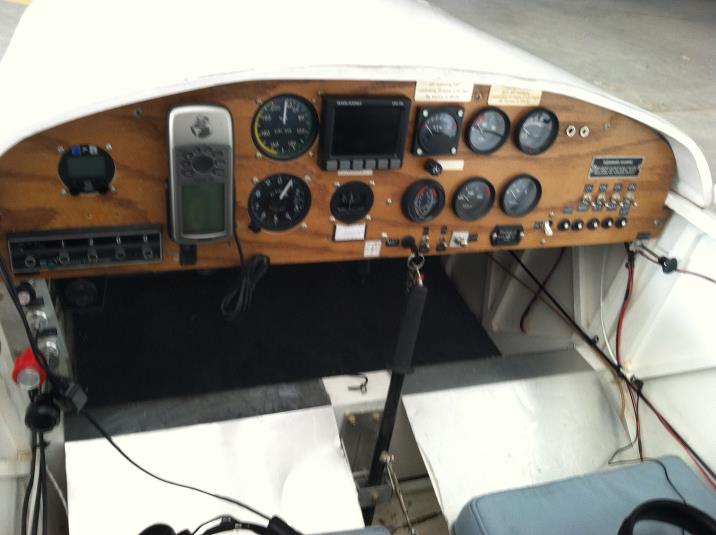

I added a Dynon D6 to my Instrument Panel in Spring of 2010. This is a short
clip of the panel and flying over Truman Lake in MO.
